Nanjing Jinhui Storage Equipment Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov neeg muag khoom ntawm Four Way Shuttle System hauv Suav teb. Txais tos rau cov lag luam wholesale zoo cia khoom ua nyob rau hauv Suav teb nov los ntawm peb lub hoobkas. Peb kuj txais customized txiav txim.
Intelligent High -Density Automated Pallet Storage Solution
Product Overview

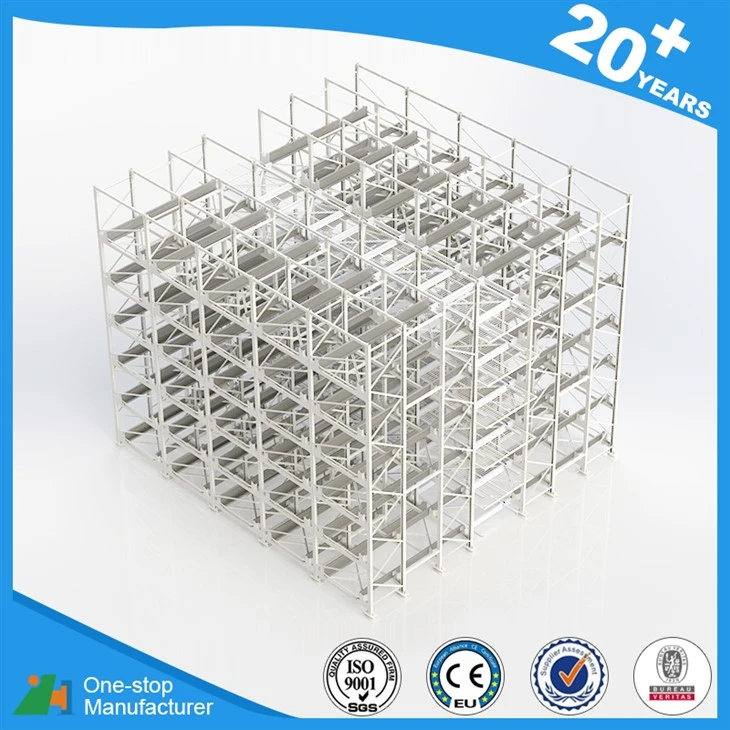

Plaub Txoj Kev Shuttle System yog ib qho kev ua haujlwm puv ntoob pallet cia kev daws teeb meem tsim los rau niaj hnub siab -cov khoom lag luam ceev. Tsis zoo li cov txheej txheem racking ib txwm muaj, qhov kev daws teeb meem no ua rau cov neeg nqa khoom thauj mus rau ob qho tib si kab rov tav thiab ntsug hauv cov qauv racking, ua kom cov pallet hloov tau yooj yim hla ntau txoj kab thiab theem.
Lub system yog tsim los ntawm:
- Plaub -txoj kev tsheb thauj mus los
- Heavy-cov haujlwm steel racking qauv
- Vertical lifts
- Conveyor systems
- Warehouse Control System (WCS)
- Warehouse Management System (WMS)
- Kev tu thiab kev nyab xeeb platforms
Qhov no modular architecture tso cai scalable deployment raws li warehouse loj thiab throughput yuav tsum tau.
Qhov System ua haujlwm li cas
- Pallets raug xa mus rau cov kab inbound conveyor.
- Vertical nqa nqa pallets mus rau qib uas tau teev tseg.
- Plaub -txoj kev shuttle txav pallets rau qhov chaw khaws cia.
- WMS sau cov ntaub ntawv khaws cia hauv lub sijhawm.
- Rau kev ua haujlwm sab nrauv, lub tsheb thauj mus los khaws cov pallets thiab xa lawv mus rau lub nqa thiab tawm sab nraud.
Qhov kev ua haujlwm ntse no ua rau txo qis kev tsheb thauj mus los thiab txhim kho kev ruaj ntseg hauv tsev rau khoom.
Core Technical Advantages
Multi-Kev taw qhia Shuttle Movement
Lub shuttle txav mus rau pem hauv ntej, rov qab, sab laug, thiab sab xis, tso cai hla -aisle pallet hloov mus yam tsis muaj kev vam khom txoj kab.
Ultra-High Storage Density
Tsim los rau txoj kab nqaim thiab sib sib zog nqus- txoj kab kev teeb tsa, lub kaw lus ua kom muaj qhov chaw siv khoom siv hluav taws xob ntau tshaj plaws.
Fully Automated Ua Haujlwm
Kev sib xyaw ua ke WMS/WCS ua kom muaj tiag - sijhawm teem sijhawm, taug qab cov khoom muag, thiab kev kuaj xyuas qhov system.
Kev ua haujlwm siab dhau
Ntau lub tsheb thauj mus los ua haujlwm ib txhij, ua kom cov pallet tuav tau zoo heev.
Txias Cia Compatibility
Engineered rau ib puag ncig xws li -25℃mus rau +45 degree, ua rau nws zoo tagnrho rau chav txias thiab freezer warehouse applications.
Intelligent Battery Management
Lithium roj teeb- lub hwj chim shuttle nrog cov kev xaiv them nyiaj tsis siv neeg ua kom tsis muaj kev cuam tshuam.
Technical Specifications
| Yam khoom | Specification |
|---|---|
| Shuttle Type | Plaub -Txoj Kev Txawj Ntse Shuttle |
| Load Capacity | Txog li 1500 kg ib pallet |
| Max Rack Qhov siab | Mus txog 25 m |
| Ua haujlwm kub | -25℃rau +45 degree |
| Fais fab mov | Lithium roj teeb |
| Tswj System | Kev sib koom ua ke ntawm WMS / WCS |
| Kev sib txuas lus | Wireless Network |
| Khoom siv | Siab -Lub zog Q235B Steel |
| Nto tiav | Hmoov Coated |
Plaub Txoj Kev Shuttle System yog qhov zoo rau:
- E- chaw faib khoom lag luam
- Thib peb- tog logistics (3PL)
- Txias cia & khov zaub mov warehouses
- Pharmaceutical distribution centers
- Automotive spare qhov chaw cia
- FMCG siab- cov chaw khaws khoom lag luam
Khoom Paub meej
THOV NYIAJ RAU HAUV PAUS
Lub load - nqa quab yuam ntawm lub tsheb thauj khoom tau ntxiv dag zog, thiab hom tsis siv neeg lossis hom phau ntawv tuaj yeem hloov tau ntawm qhov xav tau.
Lub neej ntev roj teeb
Lub roj teeb tuaj yeem siv tsis tu ncua thiab tuaj yeem siv tau thaum them tag nrho.
ADJUSTABLE FOOT
Lub adjustable footing yog loj, muaj zog bearing peev xwm thiab tuaj yeem kho qhov siab raws li hauv av.
Forklift-Kev Ua Haujlwm Dawb & Kev Tswj Xyuas Cov Khoom Muag Yooj Yim
Tsis zoo li kev tsav tsheb ib txwm muaj- nyob rau hauv racking systems, plaub txoj kev shuttle system tshem tawm qhov xav tau forklifts nkag mus rau cov kab cia thaum lub sijhawm thauj khoom thiab thauj khoom.
Nrog cov qauv tsav tsheb- hauv racks, forklifts yuav tsum tsav mus tob rau hauv txoj kev mus rau cov khoom, uas ua rau kom lub sij hawm tuav thiab ua rau muaj kev pheej hmoo ntawm kev puas tsuaj ntawm cov khib nyiab thiab teeb meem kev nyab xeeb.
Nyob rau hauv sib piv, lub shuttle system ua hauj lwm txawv:
- Forklifts tso pallets nkaus xwb ntawm qhov nkag ntawm txoj kab cia.
- Lub shuttle carrier cia li thauj pallets mus rau qhov chaw cia khoom.
- Tsis tas yuav nkag mus rau aisle.
Qhov kev tsim no muab ntau yam zoo:
✔ Txo forklift mus deb
✔ Kev thauj khoom sai dua thiab tshem tawm haujlwm
✔ Tsawg qhov kev pheej hmoo ntawm kev sib tsoo khib
✔ Txhim kho kev nyab xeeb rau cov neeg ua haujlwm thiab cov khoom
✔ Ntxiv racking system kev pab cuam lub neej
Ua tsaug rau qhov sib sib zog nqus- txoj kab kev khaws cia, qhov chaw siv tau tshaj80%, ua kom muaj peev xwm ntau ntxiv hauv tib lub tsev khaws khoom hneev taw.
Tuam txhab Profile
Nanjing Jinhui Storage Equipment Co., Ltd.tsim nyob rau hauv 2006, yog ib tug kws tshaj lij nyob rau hauv kev tshawb fawb, kev loj hlob, muag thiab kev pab cuam ntawm pallet racking, mezzanine pem teb, cantilever racking, lub teeb thiab nruab nrab lub luag hauj lwm shelving, steel pallet.
Kev hwm thiab kev tsim nyog
CE
CE -shuttle
ISO9001
ISO 14001
ISO45001
